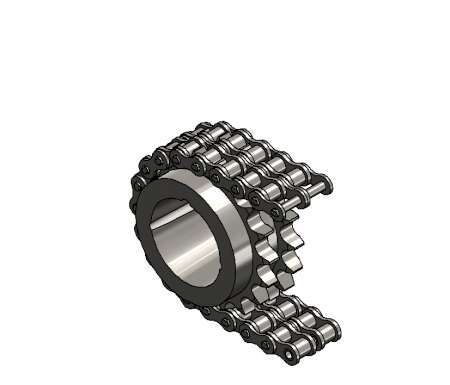

Kettingwielen taperlock duplex 06B-2 DIN 8187 / ISO 606

Technische documentatie
06B-2
K.T.N. z do Bush D L E G q CAD
Number no. ca.
[mm] [mm] [mm] [mm] [mm] [kg/pc]
2306B2017 17 51.84 1008 42 22 61 30 0.11
2306B2018 18 54.85 1008 43 22 64 30 0.15
2306B2019 19 57.87 1008 46 22 67 30 0.18
2306B2020 20 60.89 1008 48 22 70 30 0.22
2306B2021 21 63.91 1008 49 22 73 30 0.26
2306B2022 22 66.93 1108 52 22 76 30 0.28
2306B2023 23 69.95 1210 59 25 79 33 0.27
2306B2024 24 72.97 1210 61 25 82 33 0.32
2306B2025 25 76.00 1210 64 25 85 33 0.37
2306B2026 26 79.02 1210 65 25 88 33 0.44
2306B2027 27 82.05 1210 70 25 91 33 0.50
2306B2028 28 85.07 1210 70 25 94 33 0.57
2306B2030 30 91.12 1210 75 25 100 33 0.68
2306B2038 38 115.34 1610 80 25 124 33 1.03
2306B2045 45 136.54 1610 80 25 146 33 1.10
2306B2057 57 172.91 1610 80 25 182 33 1.16
2306B2076 76 230.49 1610 80 25 239 33 2.19
2306B2095 95 288.08 1610 90 25 297 33 3.42
2306B2114 114 345.68 1615 95 38 354 46 4.80
